Theme Basics

Themes in Grav are quite simple, and very flexible because they are built with the powerful Twig Templating engine. Every theme is created with a combination of twig files (a mixture of twig-like PHP code and HTML), called templates, and CSS. We typically use Sass CSS Extension to generate our CSS files, but there is nothing stopping you from using Less, or even regular CSS. It simply comes down to your own personal preferences.

Content Pages & Twig Templates

The first thing to understand is the direct relationship between pages in Grav and the Twig template files that are provided in a theme.

Each page you create references a specific template file, either by the name of the page file, or by setting the template header variable for the page. For simpler maintenance, we advise using the page name rather than overriding it with the header variable, whenever possible.

Let us work through a simple example. If you have installed the Grav Base package you will notice that in the user/pages/01.home folder, you have a file called default.md which contains the markdown-based content for the page. The name of this file, i.e. default tells Grav that this page should be rendered with the Twig template called default.html.twig which is located in the theme's templates/ folder.

If you were to have a page file called blog.md, Grav would try to render it with the Twig template: <your_theme>/templates/blog.html.twig.

Theme Organization

Definition & Configuration

Each theme should have a definition file called blueprints.yaml which has some information about the theme. It can optionally provide form definitions to be used in the Administration Panel to allow for editing of theme options. The Antimatter theme has the following blueprints.yaml file:

name: Antimatter
slug: antimatter
type: theme
version: 1.6.7
description: "Antimatter is the default theme included with **Grav**"
icon: empire
author:
  name: Team Grav
  email: [email protected]
  url: https://getgrav.org
homepage: https://github.com/getgrav/grav-theme-antimatter
demo: https://demo.getgrav.org/blog-skeleton
keywords: antimatter, theme, core, modern, fast, responsive, html5, css3
bugs: https://github.com/getgrav/grav-theme-antimatter/issues
license: MIT

dependencies:
    - { name: grav, version: '>=1.6.0' }

form:
  validation: loose
  fields:
    dropdown.enabled:
        type: toggle
        label: Dropdown in navbar
        highlight: 1
        default: 1
        options:
          1: Enabled
          0: Disabled
        validate:
          type: bool

If you want to use theme configuration options you should provide default settings in a file called <your_theme>.yaml. For example:

enabled: true
color: blue

To know more about the available forms that you can create, refer to chapter 6. Forms. You should also provide a 300px x 300px image of your theme and call it thumbnail.jpg at the root of the theme. It will show up in the theme section of your admin panel.

Templates

There are no set rules regarding the structure of a Grav theme except that there must be appropriate Twig templates provided in the templates/ folder for each of the page types you use in your content.

Generally speaking, the root of the templates/ folder should be used to house the primary templates that are supported, then create a sub-folder called partials/ to contain parts, or smaller template chunks.

If you want to support modular templates in your theme, you should also create a sub-folder of templates called modular/ and store your modular Twig template files in there.

The story for supporting forms is the same. Create another sub-folder called forms/ and store any custom form templates in it.

SCSS / LESS / CSS

Again, there is nothing set in stone here, but a solid practice is to have a sub-folder called scss/ if you want to develop with Sass, or less/ if you prefer Less along with a css/ folder to put static CSS files, and a css-compiled/ folder for any automatically generated files from your Sass or Less compilations.

How you organize your files here is completely up to you. Feel free to follow our example in the default antimatter theme provided with the Grav Base package for some ideas. We are using the scss variant of Sass which is more CSS-like, and frankly more natural to write.

To install Sass on your computer, simply follow the instructions on the sass-lang.com website.

1. Execute the simple provided scss shell script by typing ./scss.sh from the root of the theme.
2. Running the command directly scss --source-map --watch scss:css-compiled which is the same thing.

By default, this will compile your scss files into the css-compiled/ folder. You can then reference the resulting css file in your theme.

Blueprints

The blueprints/ folder is used to define forms for options and configuration for each of the template files. These are used by the Administration Panel and are optional. The theme is 100% functional without these, but they will not be editable via the administration panel, unless provided.

Theme and Plugin Events

Another powerful feature that is purely optional is the ability for a theme to interact with Grav via the plugins architecture. In short, during the initialization sequence of Grav, there are several points in the sequence where you can "hook" your own piece of code. This can be useful, for example, to define extra path shortcuts in your theme when Twig is initializing, so that you can use them in your Twig templates. These hooks are available to you through a set of "empty" functions with names predefined by the Grav system, which you can fill at your convenience. Chapter 4. Plugins has more information about the plugin system and the available event hooks. To make use of these hooks in your theme, simply create a file called mytheme.php and use the following format:

<?php
namespace Grav\Theme;

use Grav\Common\Theme;

class MyTheme extends Theme
{

    public static function getSubscribedEvents(): array
    {
        return [
            'onThemeInitialized' => ['onThemeInitialized', 0]
        ];
    }

    public function onThemeInitialized(): void
    {
        if ($this->isAdmin()) {
            $this->active = false;
            return;
        }

        $this->enable([
            'onTwigSiteVariables' => ['onTwigSiteVariables', 0]
        ]);
    }

    public function onTwigSiteVariables(): void
    {
        $this->grav['assets']
            ->addCss('plugin://css/mytheme-core.css')
            ->addCss('plugin://css/mytheme-custom.css');

        $this->grav['assets']
            ->add('jquery', 101)
            ->addJs('theme://js/jquery.myscript.min.js');
    }
}

As you can observe, in order to use the event hooks you first need to register them in a list with the getSubscribedEvents function and then define them with your own code. If you subscribe an event for use, define it as well. Otherwise you will get an error.

Other Folders

We recommend creating individual folders at the root of your theme for images/, fonts/ and js/ to contain your custom theme images, any custom web fonts, and javascript files required.

Theme Example

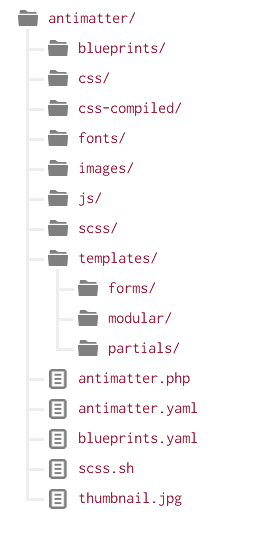

Let us use the default antimatter theme as an example, below you can see the overall structure of this theme:

In this example, the actual css, css-compiled, fonts, images, js, scss, and templates files have been ignored to make it more readable. The important thing to note is the overall structure of the theme.
